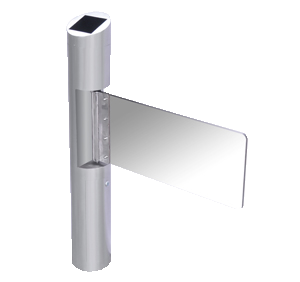

SWB102 – MAG TUBULAR SWING BARRIER

SWB102 – MAG TUBULAR SWING BARRIER

·         Cabinet dimension : 168mm (Diameter) x 1050mm (H) x 618mm (W)

·         Weight : 30 kg

·         Default gate length (transparent arylic) : 450mm

·         Cabinet material # 304 stainless steel, 2.0 mm

·         Power supply : AC220 ±10%V/50 ±10%HZ

·         Motor voltage : DC 24V (Brushless motor)

·         Access device input voltage : Dry contact

·         Optimal flow rate : 20 to 25 people per minute

·         Gate swing angle : 90 deg per side

·         Gate opening speed Programmable : 0.9 - 2.8 sec

·         Initialization time : 14 sec

·         Working environment : Indoor only

·         Working temperature : -25℃ - 50℃

·         Relative humidity : ≤ 95%

·         Power Rating ; 30 W

·         IP Rating : IP 52
