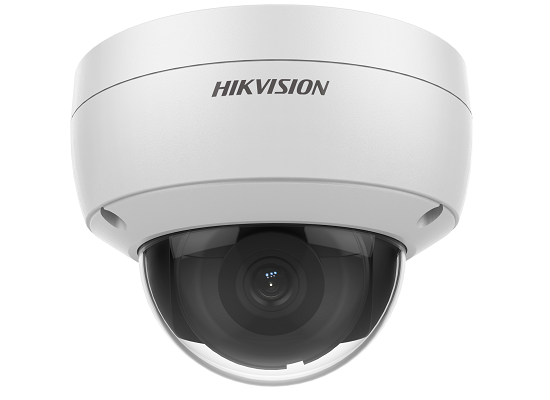

DS-2CD2123G0-IU 2 MP WDR Fixed Dome Network Camera with Build-in Mic
· Image Sensor : 1/2.8" Progressive Scan CMOS
· Min. Illumination : Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
· Shutter Speed : 1/3 s to 1/100,000 s
· Slow Shutter : Yes
· Day & Night : IR Cut Filter
· WDR : 120 dB
· Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
· Lens Type : Fixed lens, 2.8/4/6 mm
· Aperture : F2.0
· FOV : 2.8mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° , 4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° , 6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
· Lens Mount : M12
· IR Range : Up to 30 m
· Wavelength : 850 nm
· Max. Resolution : 1920 × 1080
· Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) , 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
· Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) , 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
· Third Stream : 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) , 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
· Video Compression : Main stream/third stream: H.265/H.264 , Sub-stream: H.265/H.264/MJPEG
· H.264 Type : Main Profile/High Profile
· H.264+ & H.265+ : Main stream supports
· H.265 Type : Main Profile
· Video Bit Rate : 32 Kbps to 16 Mbps
· Scalable Video Coding (SVC) : H.264 and H.265 encoding support
· Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3
· Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps320Kbps(MP3)
· Environment Noise Filtering : Yes
· Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
· Image Enhancement : BLC, HLC, 3D DNR
· Audio : 1 input (line in/mic in), 1 output (line out), terminal block, mono sound
· Dimension : Φ 111 × 82.4 mm (Φ 4.4" × 3.2")
· Weight : Approx. 610 g (1.3 lb.)
· Protection : IK10, IP67
