    TOA
    A-2120 Mixer Power Amplifier (CE-AU version)   ·         Power Source : 220 - 240 V AC, or 24 V DC ·         Rated Output : 120 W ·         Power Consumption : 124 W (EN60065), 8 A (DC operation at rated output) ·         Frequency Response : 50 - 20,000 Hz (±3 dB) ·         Distortion : 1% or ...Read more

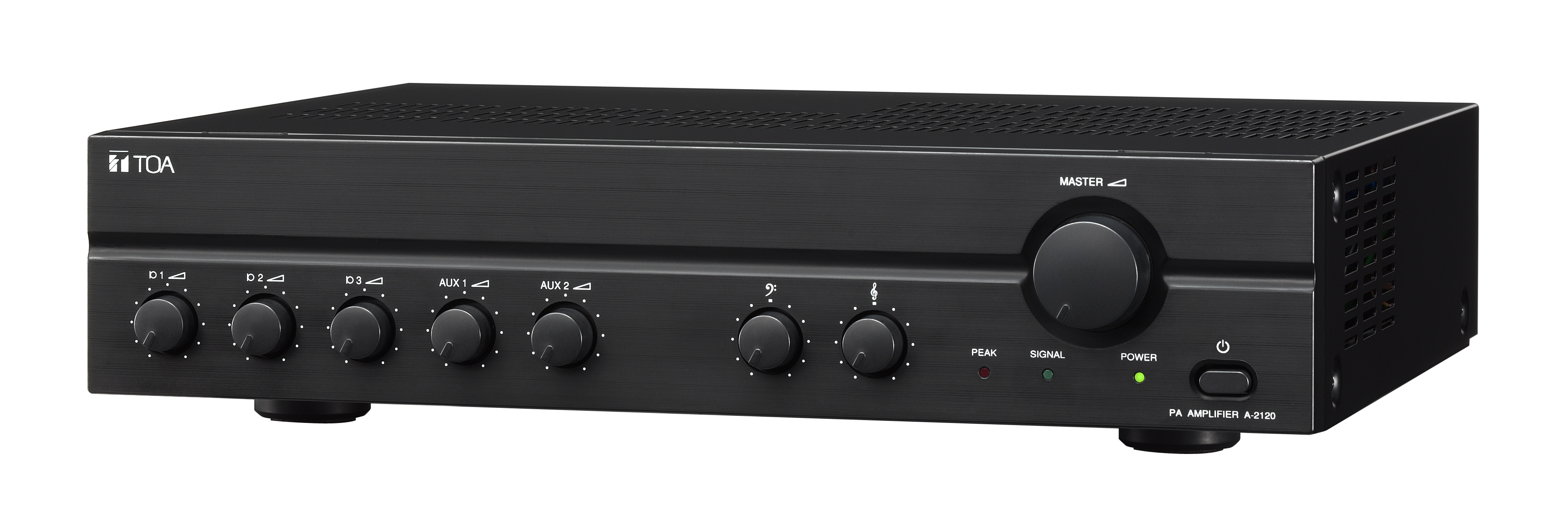

    A-2120 Mixer Power Amplifier (CE-AU version)


    • Description

    A-2120 Mixer Power Amplifier (CE-AU version)



    ·         Power Source : 220 - 240 V AC, or 24 V DC

    ·         Rated Output : 120 W

    ·         Power Consumption : 124 W (EN60065), 8 A (DC operation at rated output)

    ·         Frequency Response : 50 - 20,000 Hz (±3 dB)

    ·         Distortion : 1% or less at 1 kHz, 1/3 rated power

    ·         Input : MIC 1 - 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type ; AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

    ·         Mute : Contact screw terminal (for MIC 1)

    ·         Output : Speaker out : Balanced (floating), M3.5 screw terminal, ; distance between barriers: 8.3 mm (0.33") ; High impedance: 83 Ω (100 V), 42 Ω (70 V) ; Low impedance: 4 Ω (22 V) ; Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

    ·         Phantom Power      DC +21 V (MIC 1)

    ·         S/N Ratio : 60 dB or more

    ·         Tone Control : Bass: ±10 dB at 100 Hz ; Treble: ±10 dB at 10 kHz

    ·         Muting          MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal

    ·         contact.

    ·         Finish Panel: ABS resin, black ; Case: Steel plate, black

    ·         Dimensions : 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")

    ·         Weight : 10.8 kg (23.81 lb)
