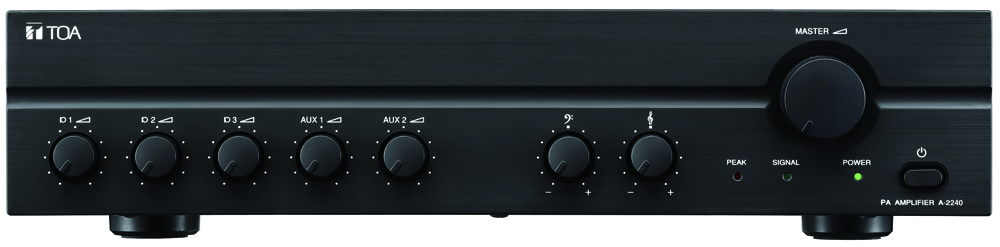

A-2240 Mixer Power Amplifier (CE version)

A-2240 Mixer Power Amplifier (CE version)

·         Power Source : 220 - 240 V AC, or 24 V DC

·         Rated Output : 240 W

·         Power Consumption : 238 W (EN60065), 15 A (DC operation at rated output)

·         Frequency Response : 50 - 20,000 Hz (±3 dB)

·         Distortion : 1% or less at 1 kHz, 1/3 rated power

·         Input : MIC 1: -60 dB*, 600 Ω, balanced, DIN type (5 pins) ; MIC 2, 3: -60 dB*, 600 Ω, balanced, phone jack ; AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack ; Mute: Contact pin 4 - 5 closure input (for MIC 1)

·         Output Speaker : out: Balanced (floating), M3.5 screw terminal, ; distance between barriers: 8.3 mm (0.33") ; High impedance: 42 Ω (100 V), 21 Ω (70 V) ; Low impedance: 4 Ω (31 V) ; Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

·         Phantom Power : DC +21 V (MIC 1)

·         S/N Ratio : 60 dB or more

·         Tone Control : Bass: ±10 dB at 100 Hz ; Treble: ±10 dB at 10 kHz

·         Muting : MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal ; contact in MIC 1 DIN type connector.

·         Ventilation : Fan cooling

·         Finish : Panel: ABS resin, black ; Case: Steel plate, black

·         Dimensions : 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")

·         Weight : 13.2 kg (29.1 lb)
