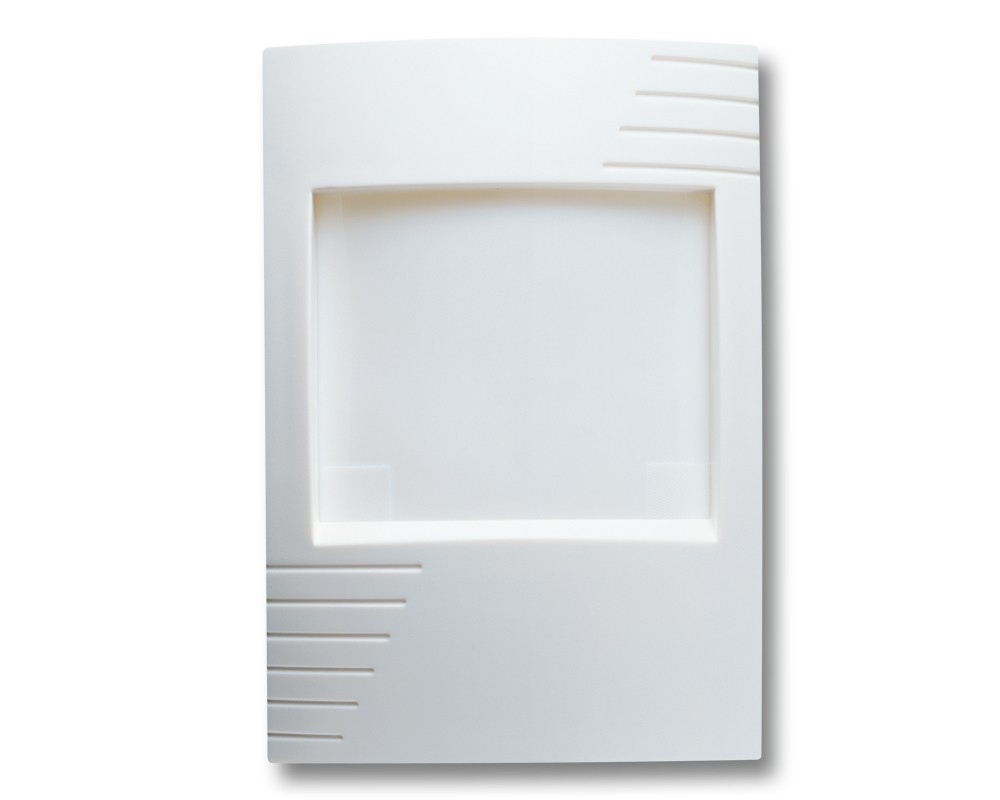

Texecom Veritas Reflex PIR

Texecom Veritas Reflex PIR

·         Range : 12m (40 feet), 104˚ volumetric coverage

·         Supply Voltage : 9 - 16VDC

·         Current Consumption : 10mA typical at 12VDC

·         Alarm Signaling : Built-in normally closed relay

·         Alarm Relay : Rated at 24VDC, 50mA protected by 18Ω series resistor

·         Dimensions : 90mm x 63mm x 40mm

·         Packed Weight : 125g (4.5oz) approx.

·         EMC : Independently certified to EN50130-4 : 1996

·         Design : Noise reduction circuits with maximum ground plane

·         RF Immunity : No false alarms from 80MHz to 1GHz at 50V/m modulated
