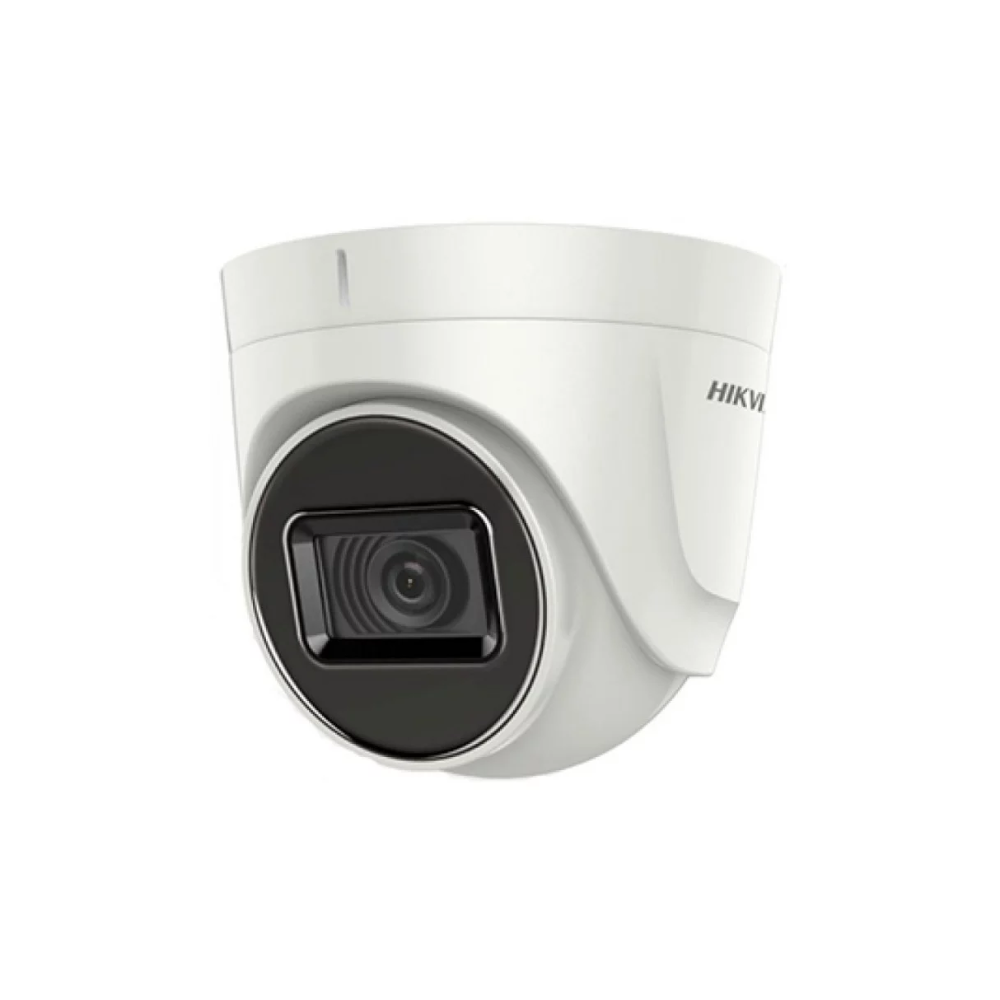

DS-2CE76U0T-ITPF 8MP Fixed Turret Camera
· Image Sensor 8.29 megapixel progressive scan CMOS
· Signal System PAL/NTSC
· Frame Rate : TVI: This email address is being protected from spambots. You need JavaScript enabled to view it., 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps , CVI: This email address is being protected from spambots. You need JavaScript enabled to view it., 8MP@15fps , AHD: 5MP@20fps , CVBS: 960H P/N
· Resolution : 3840 (H) × 2160 (V)
· Min. Illumination : Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
· Shutter Time : PAL: 1/12.5 s to 1/50,000 s , NTSC: 1/15 s to 1/50,000 s
· Lens : 2.8 mm, 3.6 mm, 6 mm fixed lens
· Horizontal Field of View : 102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
· Lens Mount : M16
· Day & Night : IR cut filter
· Angle Adjustment (Bracket) : Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
· Synchronization : Internal synchronization
· DWDR (Digital Wide Dynamic Range) : 105 dB
· Material : Plastic
· IR Range : Up to 30 m
· Dimensions : Ø 70 mm × 159.8 mm (Ø 2.76" × 6.29" )
· Weight : Approx. 180 g (0.40 lb.)
