    Hikvision
    DS-2CD1323G0-IU 2 MP IR Fixed Turret Network Camera   ·         Image Sensor : 1/2.8" Progressive Scan CMOS ·         Min. Illumination : Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR ·         Shutter Speed : 1/3 s to 1/100,000 s ·         Slow Shutter : Yes ·         Day & Night : IR ...Read more

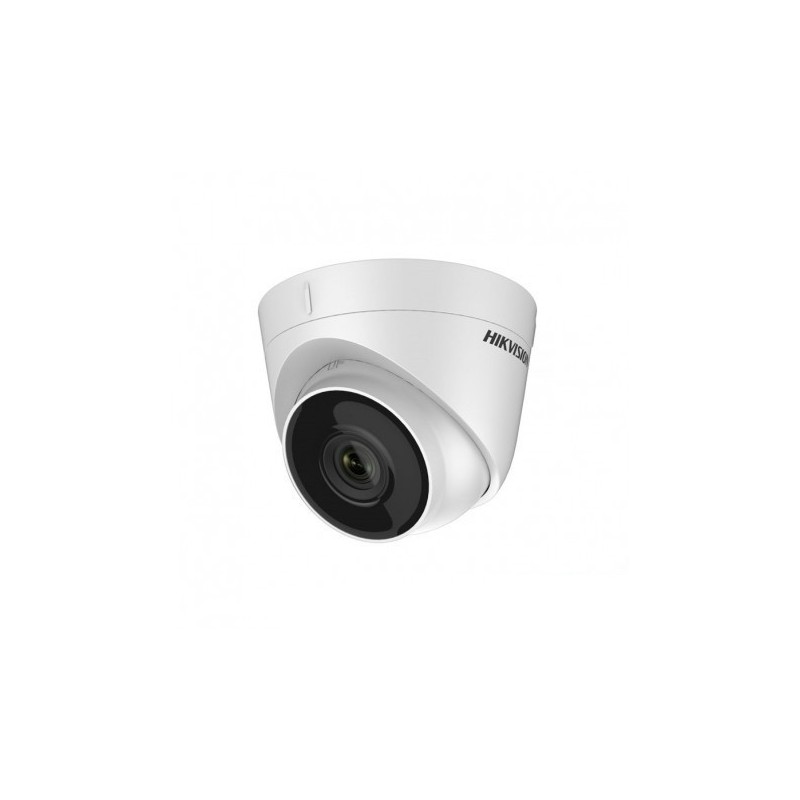

    DS-2CD1323G0-IU 2 MP IR Fixed Turret Network Camera


    • Description

    DS-2CD1323G0-IU 2 MP IR Fixed Turret Network Camera



    ·         Image Sensor : 1/2.8" Progressive Scan CMOS

    ·         Min. Illumination : Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

    ·         Shutter Speed : 1/3 s to 1/100,000 s

    ·         Slow Shutter : Yes

    ·         Day & Night : IR Cut Filter

    ·         WDR : DWDR

    ·         Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

    ·         Lens Type : Fixed lens, 2.8/4 mm

    ·         Aperture : F2.0

    ·         FOV : 2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°  ,  4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

    ·         Lens Mount : M12

    ·         IR Range : Up to 30 m

    ·         Wavelength : 850 nm

    ·         Max. Resolution : 1920 × 1080

    ·         Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

    ·         Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) , 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

    ·         Video Compression : Main stream: H.265+/H.265/H.264+/H.264  ,  Sub-stream: H.265/H.264/MJPEG

    ·         H.264 Type : Baseline Profile/Main Profile/High Profile

    ·         H.265 : Type Main Profile

    ·         Video Bit Rate : 32 Kbps to 8 Mbps

    ·         Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM

    ·         Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

    ·         Day/Night Switch : Day/Night/Auto/Schedule

    ·         Power Supply : 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)

    ·         Power Consumption and Current : 12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W

    ·         Material : Camera body: metal  ,  bottom base : plastic

    ·         Dimensions : 94.4 × Φ110 mm (3.7" × Φ4.3")

    ·         Weight : Approx. 354 g (0.8 lb.)
