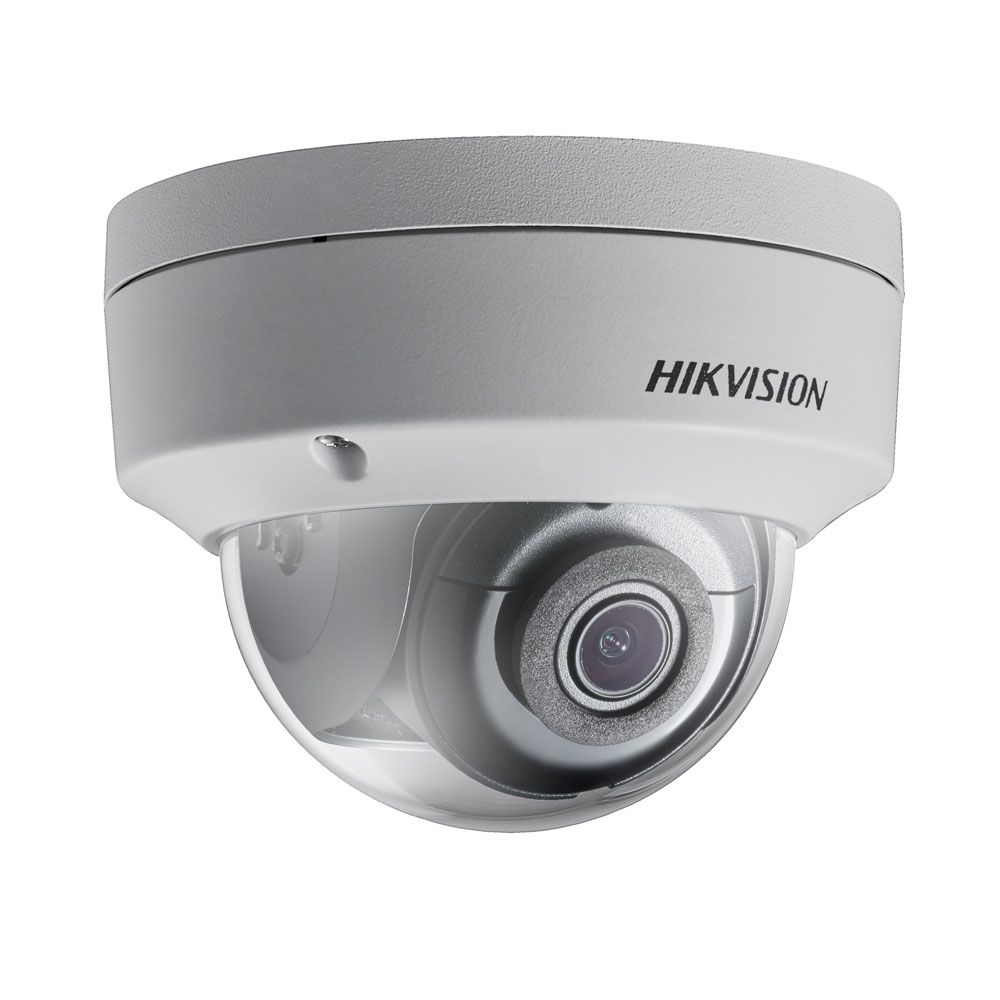

DS-2CD2123G0-I(S) 2 MP IR Fixed Dome Network Camera

DS-2CD2123G0-I(S) 2 MP IR Fixed Dome Network Camera

·         Image Sensor : 1/2.8" Progressive Scan CMOS

·         Min. Illumination :  Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

·         Shutter Speed : 1/3 s to 1/100,000 s

·         Slow Shutter : Yes

·         Auto-Iris : No

·         Day & Night : IR Cut Filter

·         Digital Noise Reduction : 3D DNR

·         WDR : 120dB

·         3-Axis Adjustment : Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°

·         Focal length : 2.8/4/6/8 mm

·         Aperture : F2.0

·         Focus : Fixed

·         FOV : 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°  ,  4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°  ,  6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°  ,  8 mm, horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50°

·         Lens Mount : M12

·         IR Range :  Up to 30 m

·         Wavelength : 850nm

·         Video Compression : Main stream: H.265/H.264  ,  Sub-stream: H.265/H.264/MJPEG  ,  Third stream: H.265/H.264

·         H.264 : Type Main Profile/High Profile

·         H.264+ & H.265+  : Main stream supports

·         H.265 : Type Main Profile

·         Video Bit Rate : 32 Kbps to 16 Mbps

·         Audio Compression (-S) : G.711/G.722.1/G.726/MP2L2/PCM

·         Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

·         Max. Resolution : 1920 × 1080

·         Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) , 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

·         Sub-Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) , 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

·         Third Stream : 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) , 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

·         Image Enhancement : BLC/3D DNR/HLC

·         Day/Night Switch : Day/Night/Auto/Schedule/Triggered by alarm in (-S)

·         Audio (-S) : 1 input (line in/mic in), 1 output (line out), terminal block, mono sound

·         Protection Level : IP67, IK10

·         Material : Camera body: metal, bubble: plastic

·         Dimensions : Φ 111 × 82.4 mm (Φ 4.4" × 3.2")

·         Weight : Approx. 610 g (1.3 lb.)
