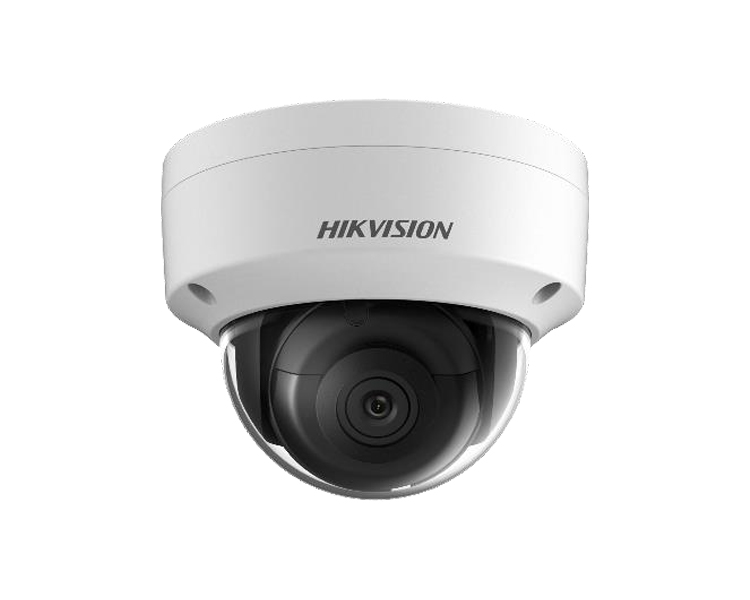

DS-2CD2183G0-I(S) 8 MP IR Fixed Dome Network Camera
· Image Sensor : 1/2.5" Progressive Scan CMOS
· Min. Illumination : Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
· Shutter Speed : 1/3 s to 1/100,000 s
· Slow Shutter : Yes
· Day & Night : IR Cut Filter
· Digital Noise Reduction : 3D DNR
· WDR : 120dB
· 3-Axis Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355
· Focal Length : 2.8/4/6/8 mm
· Aperture : F2.0
· Focus : Fixed
· FOV : 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° , 4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° , 6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59° , 8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°
· Lens Mount : M12
· IR Range : Up to 30 m
· Wavelength : 850nm
· Video Compression : Main stream: H.265/H.264 , Sub-stream: H.265/H.264/MJPEG , Third stream: H.265/H.264
· H.264 Type Main Profile/High Profile
· H.264+ & H.265+ : Main stream supports
· H.265 Type Main Profile
· Video Bit Rate : 32 Kbps to 16 Mbps
· Audio Compression (-S) : G.711/G.722.1/G.726/MP2L2/PCM
· Audio Bit Rate (-S) : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
· Max. Resolution : 3840 × 2160
· Main Stream : 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) , 60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
· Sub-Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) , 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
· Third Stream : 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) , 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
· Protection Level : IP67, IK10
· Material : Camera body: metal, bubble: plastic
· Dimensions : Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2")
· Weight : approx. 500 g (1.1 lb.)
