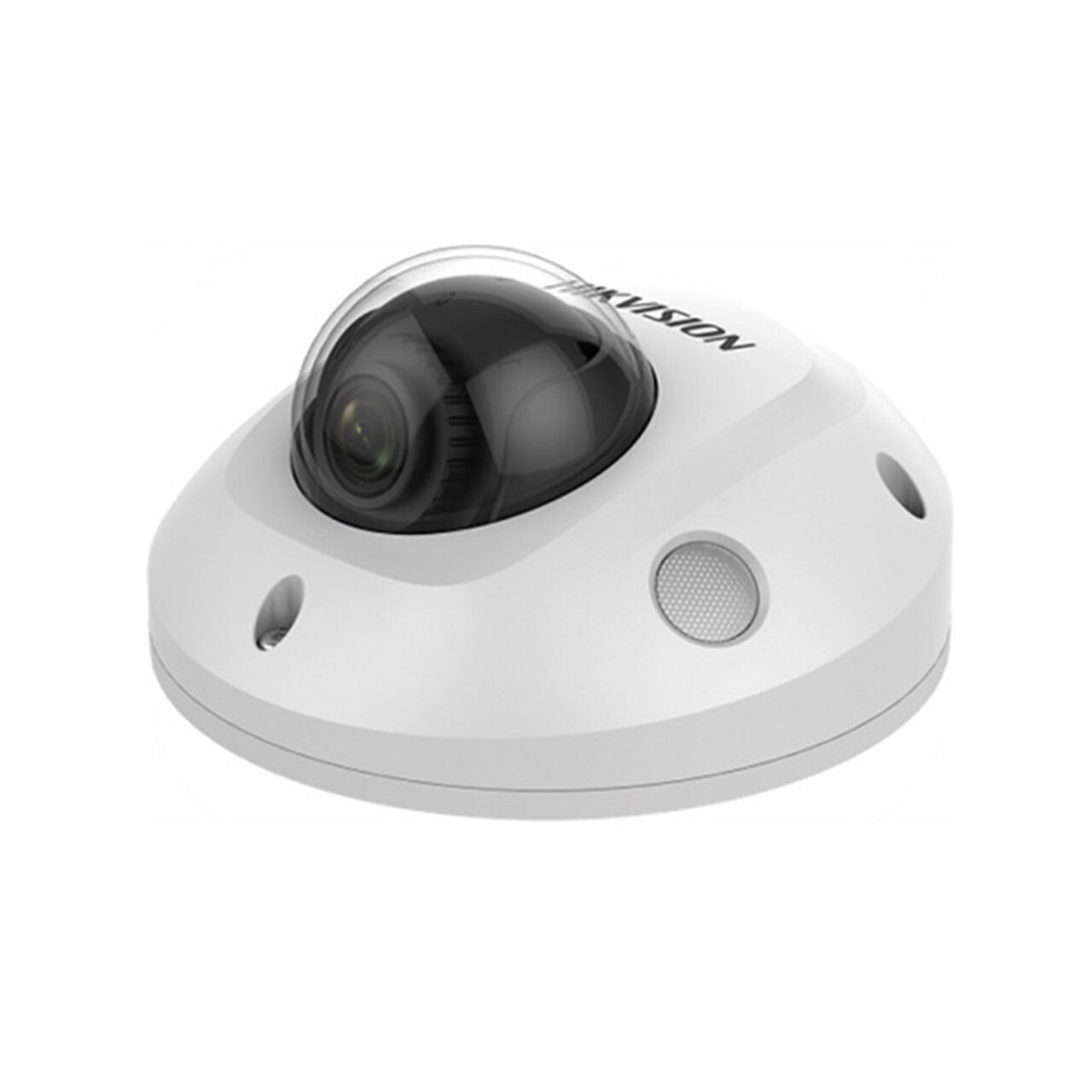

DS-2CD2523G0-I(W)(S) 2 MP EXIR Fixed Mini Dome Network Camera

DS-2CD2523G0-I(W)(S) 2 MP EXIR Fixed Mini Dome Network Camera

·         Image Sensor : 1/2.7" Progressive Scan CMOS

·         Min. Illumination : Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

·         Shutter Speed : 1/3 s to 1/100,000 s

·         Slow Shutter : Yes

·         Day & Night : IR Cut Filter

·         Digital Noise Reduction : 3D DNR

·         WDR : 120dB

·         3-Axis Adjustment : Pan: -30°to +30°, tilt: 0°to 75°, rotate: 0°to 360°

·         Focal length : 2.8, 4, 6 mm

·         Aperture : F2.0

·         FOV : 2.8 mm: Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135°  ,  4 mm: Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102°  ,  6 mm: Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62°

·         Lens Mount : M12

·         IR Range : Up to 10 m

·         Wavelength : 850nm

·         Video Compression : Main stream: H.265/H.264 , Sub stream: H.265/H.264 /MJPEG , Third stream: H.265/H.264

·         H.264 Type : Main Profile/High Profile

·         H.264+ & H.265+ : Yes

·         H.265 Type : Main Profile

·         Video Bit Rate : 256 Kbps to 16 Mbps

·         Audio Compression : G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

·         Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

·         Max. Resolution : 1920 × 1080

·         Main Stream: 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

·         Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) , 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

·         Third Stream : 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) , 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

·         Image Enhancement : BLC/3D DNR

·         Day/Night Switch : Auto/Schedule/Day/Night/Triggered by Alarm In (-S model)

·         Protection Level : IK08, IP66

·         Material : Front cover: plastic, Bottom base: metal

·         Dimensions : Φ110 mm × 56.4 mm (Φ4.3" × 2.2")

·         Weight : Approx. 400 g (0.9 lb.)
