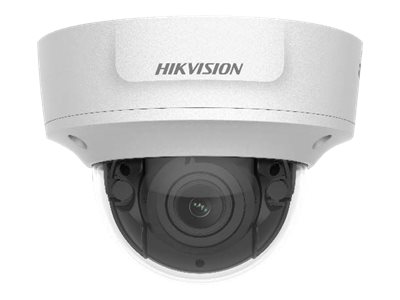

DS-2CD2743G1-IZ(S) 4 MP IR Varifocal Dome Network Camera

DS-2CD2743G1-IZ(S) 4 MP IR Varifocal Dome Network Camera

·         Image Sensor : 1/3" Progressive Scan CMOS

·         Min. Illumination : Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

·         Shutter Speed : 1/3 s to 1/100,000 s

·         Slow Shutter : Yes

·         Day & Night : IR Cut Filter

·         Digital Noise Reduction : 3D DNR

·         WDR : 120dB

·         3-Axis Adjustment : Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°

·         Focal length : 2.8 to 12 mm

·         Lens Type : Motorized

·         Aperture : F1.6

·         Focus : Auto

·         FOV : horizontal FOV: 104° to 29° , vertical FOV: 55° to 17° , diagonal FOV: 125° to 34°

·         Lens Mount : Φ14

·         IR Range : Up to 30 m

·         Wavelength : 850nm

·         Video Compression : Main stream: H.265/H.264 , Sub-stream: H.265/H.264/MJPEG , Third stream: H.265/H.264

·         H.264 Type : Main Profile/High Profile

·         H.264+ & H.265+ : Main stream supports

·         H.265 Type : Main Profile

·         Video Bit Rate : 32 Kbps to 16 Mbps

·         Max. Resolution 2688 × 1520

·         Main Stream : 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) , 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

·         Sub-Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) , 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

·         Third Stream : 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) , 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

·         Image Enhancement : BLC/3D DNR/HLC

·         Target Cropping : No

·         Day/Night Switch : Day/Night/Auto/Schedule/Triggered by alarm in (-S)

·         Protection Level : IP67, IK10

·         Material : Metal

·         Dimensions : Φ 153.3 × 111.6mm (Φ 6" × 4.4")

·         Weight : Approx. 835g (1.8 lb.)
