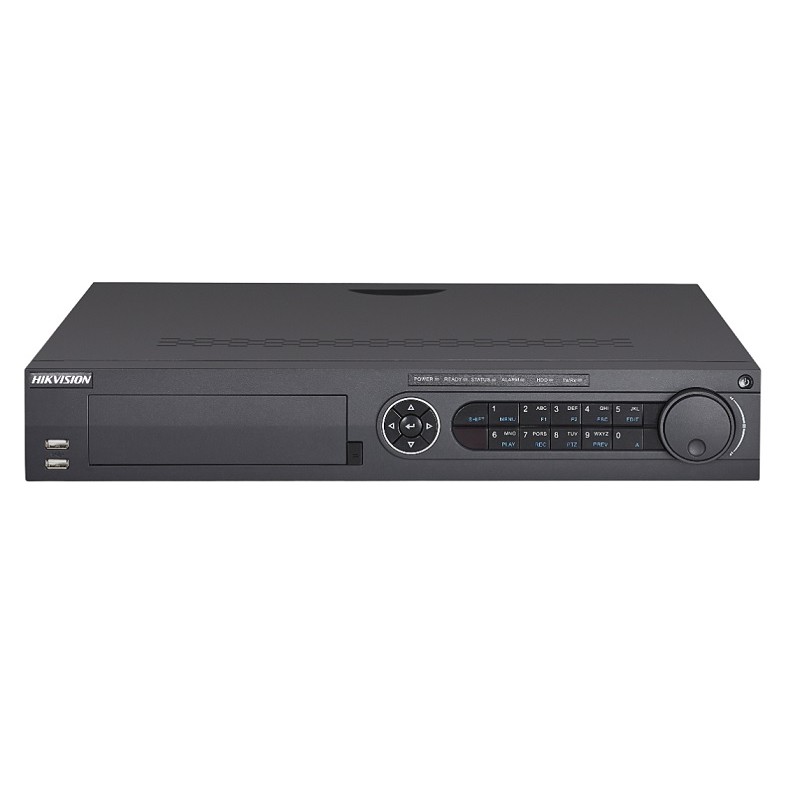

DS-7316HUHI-K4 16CH 5MP 1.5U H.265 DVR

DS-7316HUHI-K4 16CH 5MP 1.5U H.265 DVR

·         Typical chassis design to guarantee the low noise and environmental protection of the device

·         Front slot of DVD-R/W for more convenient installation and maintenance

·         Self-adaptive HDTVI, AHD, HDCVI and analog cameras

·         Up to 6/10/18-ch 8 MP IP cameras input for DS-7304/7308/7316HUHI-K4

·         8 MP/5 MP/4 MP HDTVI video input and live view

·         Long distance transmission over UTP and coaxial cable

·         H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras

·         Connectable to H.265+/H.265/H.264+/H.264 IP cameras

·         H.265+ can be enabled to improve encoding efficiency and reduce data storage costs

·         Full channel recording at up to 8 MP resolution

·         Supports POS triggered recording and POS information overlay

·         Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K

·         (3840 × 2160) resolution

·         Separate CVBS output

·         Storage and Playback

·         Four SATA interfaces (up to 8 TB capacity per HDD)

·         Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme

·         4/8/16-ch synchronous playback

·         Smart search for efficient playback

·         Supports playback by main stream, or sub-stream for IP cameras

·         Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

·         Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras

·         Supports line crossing detection and intrusion detection of all channels and sudden scene change detection of 2-ch

·         analog cameras

·         Supports people counting and heat map functions for 1-ch analog camera

·         VQD (Video Quality Diagnostics)

·         Supports PTZ control via Omnicast VMS of Genetec protocol

·         Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

·         Two gigabit Ethernet network interfaces

·         Output bandwidth limit configurable
