    CPE3


    • Description
    Product Information

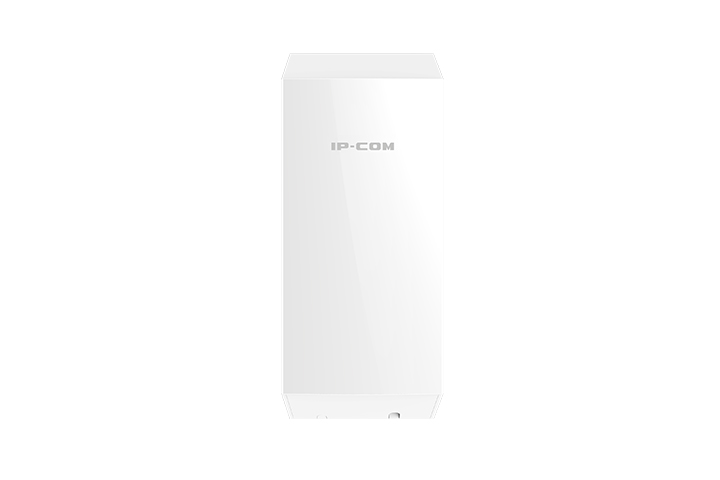

    Model CPE3
    Dimensions 190.35*80*67.5mm
    Deployment Pole Mount
    Application Scenarios Long range video surveillance,data transmission and WISP CPE
    Hardware Features
    Frequency Range 2.4GHz
    Maximum Wireless Rate 300Mbps
    Waterproof Level 1*10/100Mbps PoE/LAN Port
    Antennas Gain 8dbi
    Antenna Beamwidth Horizontal: 60° Vertical: 60°
    Reset Button 1
    Max Power Consumption 2.6W
    Waterproof Level IP65
    LED indicator PoE/LAN,WiFi,LED1,LED2,LED3
    Power Method DC or Passive PoE
    Passive PoE Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins)
    Voltage range: 9-12VDC
    Receiver sensitivity MCS0: -92dbm
    MCS7: -72dbm
    Software Features
    Operating mode AP/Station/WISP
    Compliant Standards IEEE 802.11b/g/n
    Enable/Disable Wireless Radio Support
    SSID Hidden Support
    Wireless Client isolation Support
    SSID Isolation Support
    Client Limitation For SSID Support
    Wireless Access Control Support
    Weak Signal Client Limitation Support
    Transmission Power Adjustable power by 1dBm
    WMM Capable Support
    APSD Capable Support
    Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
    Transparent Bridge Support
    VLAN Tagging for SSID Support
    DHCP Server Support
    VPN Pass-Through PPTP,L2TP
    Remote Web access Support
    Schedule Reboot Support
    Page Timeout Support
    Ping Watchdog Support
    Dyndns noip, dyndns.org
    Network Diagnoses Ping, Traceroute, Signal Scan
    Time&Date Setting Support
    Firmware upgrade Support
    Backup/Restore Configuration Support
    Username Managerment Support
    System Log Support
    Managed By Controller PC Software -- CPE Controller
    Others
    Package Contents 1*2.4GHz 8dBi Outdoor CPE
    1*Power Adapter
    1*PoE Injector
    2*Plastic Staps
    1*Quick Installation Guide
    Operating Temperature -30℃ ~ 55℃
    Storage Temperature -40℃ ~ 70℃
    Operating Humidity 10%~90% non-condensing
    Storage Humidity 10%~90% non-condensing
    Default login IP 192.168.2.1
    Default Login Username admin
    Default Login Password admin
    Certifications FCC/CE/RoHS
