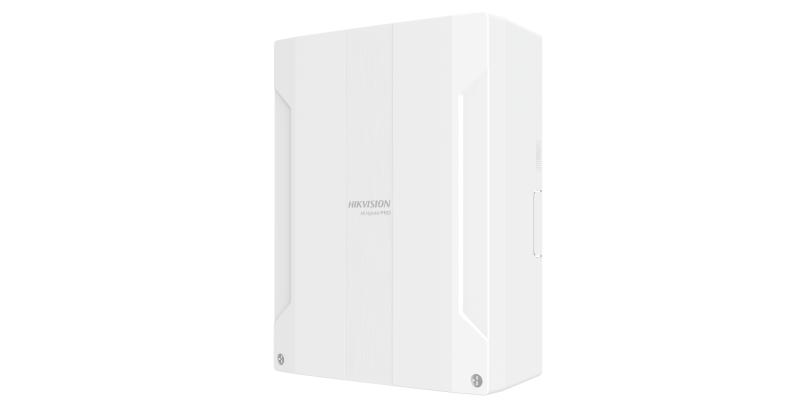

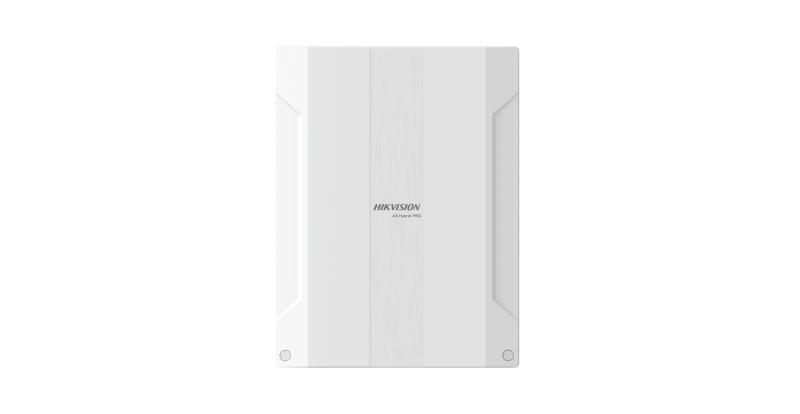

DS-PHA64-LP

Brands listing

Description

Software features
Zones64 (8 On-board zones, max 8 wired PIRCAM)
Area32
User
Installer: 1

Administrator: 1

Operator: 62
SMS notificationSupport (with GPRS/3G/4G module)
Onboard video clips4
ARC protocol
ISAPI: Supports iVMS-4200 client software and web client

Cloud P2P: Supports cloud P2P privacy protocol

DC-09: ARC accessible（ADM-CID/SIA-DCS ）

CSV-IP: Supports CSV-IP

ISUP: Supports ISUP 5.0
Programming toolsWeb/iVMS-4200/Hik-ProConnect/Keypad
Firmware upgradeWeb/iVMS-4200/Hik-ProConnect/Hik-ProConnect
End of Line ResistanceSupport 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

Hardware features
Alarm input64 (Including 8 on-board zones)
Alarm output64 (Including 2 on-board relay outputs and 2 on-board I/O outputs)
Power Output
1. Bell: maximum 12V 1.2A

2. AUX: maximum 12V 1.5A

3. Bell and AUX maximum 12V 2.1A
3/4G on boardOptional
GPRS on boardOptional
Wi-Fi802.11b/g/n (2.4GHz)
Bus1 Speed-X bus
Sounder output1 Wired on-board sounder output
Tamper-Proof
1 switch to detect removal from mounting

1 switch to detect front cover open
Netowrk interface1 RJ45 10M/100M Ethernet interface

Electrical characteristics
Power interface100 to 240 VAC (on-board power transformer)
Power Consumption
1. 220V power supply

① With an alarm: 2A, 32W

② Without an alarm: 250mA, 4W

2. 13.5V battery supply

① With an alarm: 1.7A, 25W

② Without an alarm: 200mA, 2.7W
Battery typeLead acid battery (12V 7Ah, battery is not included by default)
Battery life spanUp to 36hrs

Display
Indicator
4 On-board LEDs:

① 1 AC power LED indicator (Green)

② 1 System status LED indicator (Green/Red)

③ 1 PSTN status LED indicator (Green/Red)

④ 1 Mobile communication status LED indicator (Green/Red)

General
Operation temperature-10°C to 40°C
Operation humidity10% to 90%
Shell materialPlastic
ColorWhite
Dimension(WxHxD)261 mm × 199 mm × 86.4 mm
Weight997 g

Device management
Tag64
Keyfob64
Keypad8
Wireless sounder16
