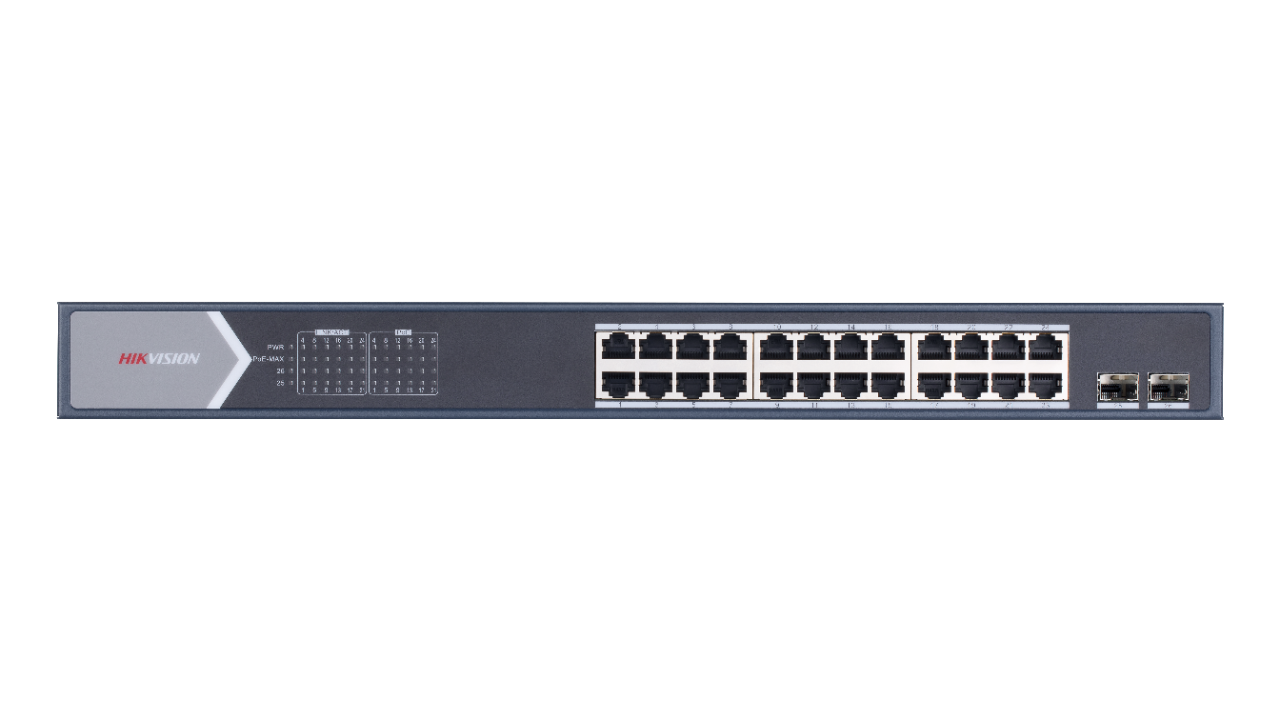

DS-3E0526P-E/M 24 Port Gigabit Unmanaged POE Switch

DS-3E0526P-E/M 24 Port Gigabit Unmanaged POE Switch

·         Port Number : 24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports

·         Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive

·         Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

·         Forwarding Mode : Store-and-forward switching

·         MAC Address Table : 8 K

·         Switching Capacity : 52 Gbps

·         Packet Forwarding Rate : 38.688 Mpps

·         Internal Cache : 4.1 Mbits

·         PoE Standard : IEEE 802.3af, IEEE 802.3at

·         PoE Power Pin : Ethernet cable 1/2/3/6 provide power supply.

·         PoE Port : Ports 1 to 24

·         Max. Port Power : 30 W

·         PoE Power Pudget : 225 W

·         Max. Power Consumption : 250 W

·         Shell : Metal material with a fan equipped.

·         Gross Weight : 4.120 kg (9.08 lb)

·         Net Weight : 2.920 kg (6.44 lb)

·         Dimension (L × H × D) : 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)

·         Power Supply : 100 to 240 VAC, 50/60 Hz, 4 A (Max)

·         Power Consumption In Idle : 25 W

·         Gigabit network access

·         Wire-speed forwarding
