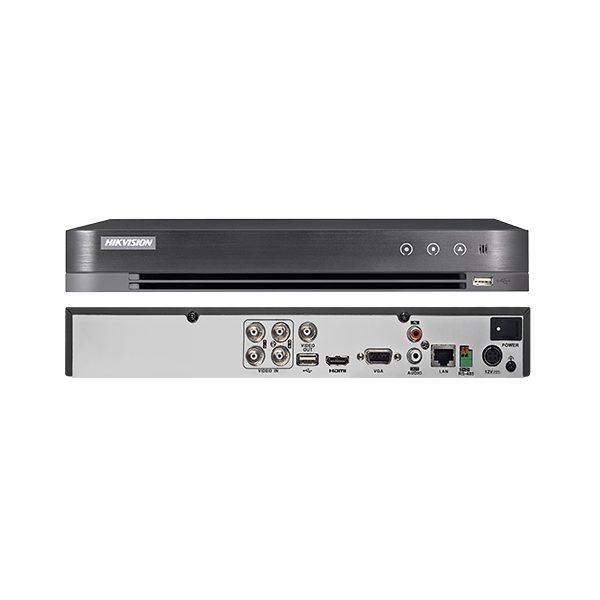

DS-7204HQHI-K1/E 4-ch 1080p 1U H.265 DVR

DS-7204HQHI-K1/E 4-ch 1080p 1U H.265 DVR

·         Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

·         Dual Stream : Support

·         Stream Type : Video, Video & Audio

·         Audio Compression : G.711u

·         Audio Bit Rate : 64 Kbps

·         Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable

·         Audio Output : 1-ch, RCA (Linear, 1 KΩ)

·         Synchronous Playback : 4-ch

·         IP Video Input : 1-ch (up to 5-ch) ; Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

·         HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30

·         CVBS Input : PAL/NTSC

·         Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

·         Analog Video Input : 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

·         AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30

·         CVBS Output : N/A

·         HDMI/VGA Output :HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output ;  VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

·         4 channels and 1 HDD 260 case DVR

·         Efficient H.265 pro+ compression technology

·         Encoding ability up to 1080p @ 15 fps

·         5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

·         Up to 6 network cameras can be connected.
