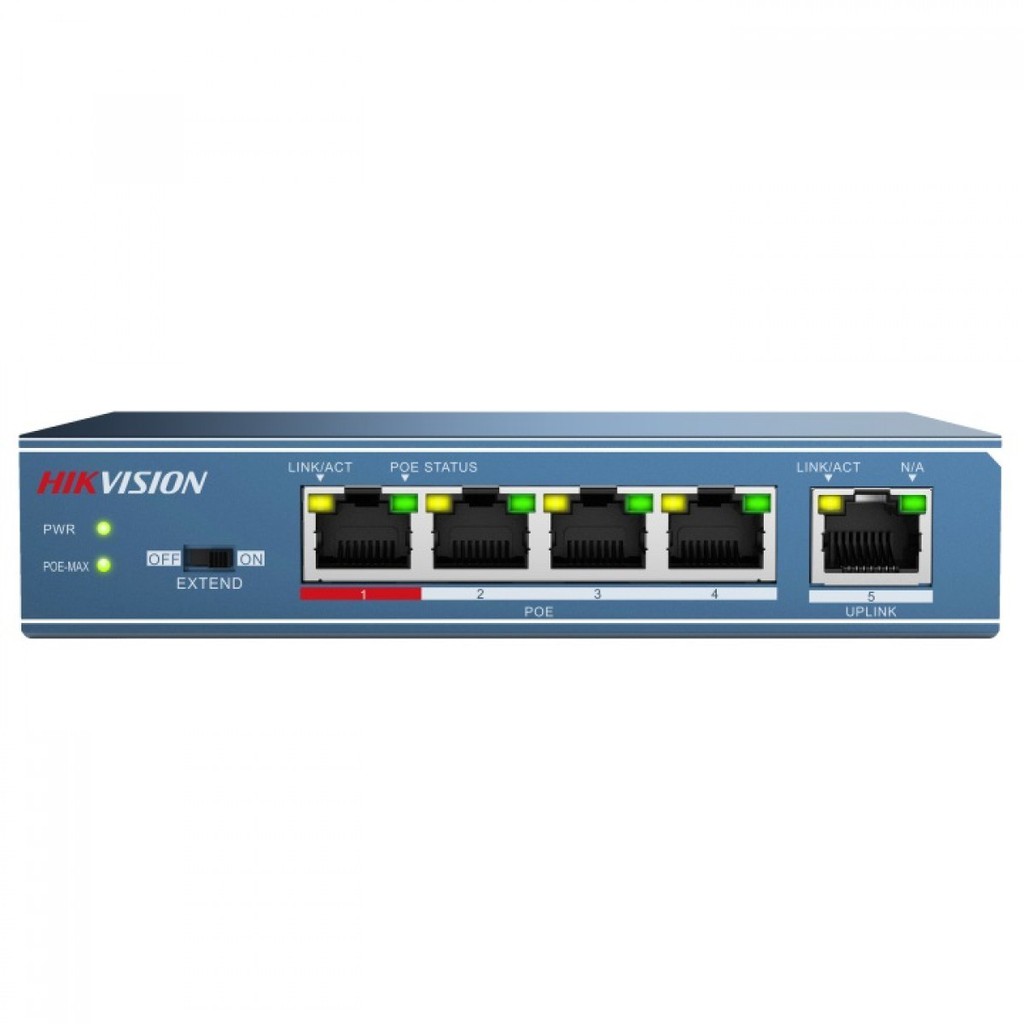

DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged POE Switch

DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged POE Switch

·         Port Number : 4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port

·         Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive

·         Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x

·         Forwarding Mode : Store-and-forward switching

·         Working Mode : Standard mode (default); Extend mode

·         High Priority Ports : Ports 1 to 2

·         Ports For Long-Distance Transmission : Ports 1 to 4

·         MAC Address Table : 1 K

·         Switching Capacity : 1 Gbps

·         Packet Forwarding Rate : 0.744 Mpps

·         Internal Cache : 448 Kbits

·         PoE Standard : IEEE 802.3af, IEEE 802.3at

·         PoE Power Pin : Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply

·         PoE Port : Ports 1 to 4

·         Max. Port Power : 30 W

·         PoE Power Pudget : 35 W

·         Max. Power Consumption : 38 W

·         Shell : Metal material, fan-free design

·         Gross Weight : 0.48 kg (1.06 lb)

·         Net Weight : 0.2 kg (0.4 lb)

·         Dimension (L × H × D) : 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)

·         Power Supply : 48 VDC, 0.8 A

·         Power Consumption In Idle : 3 W
