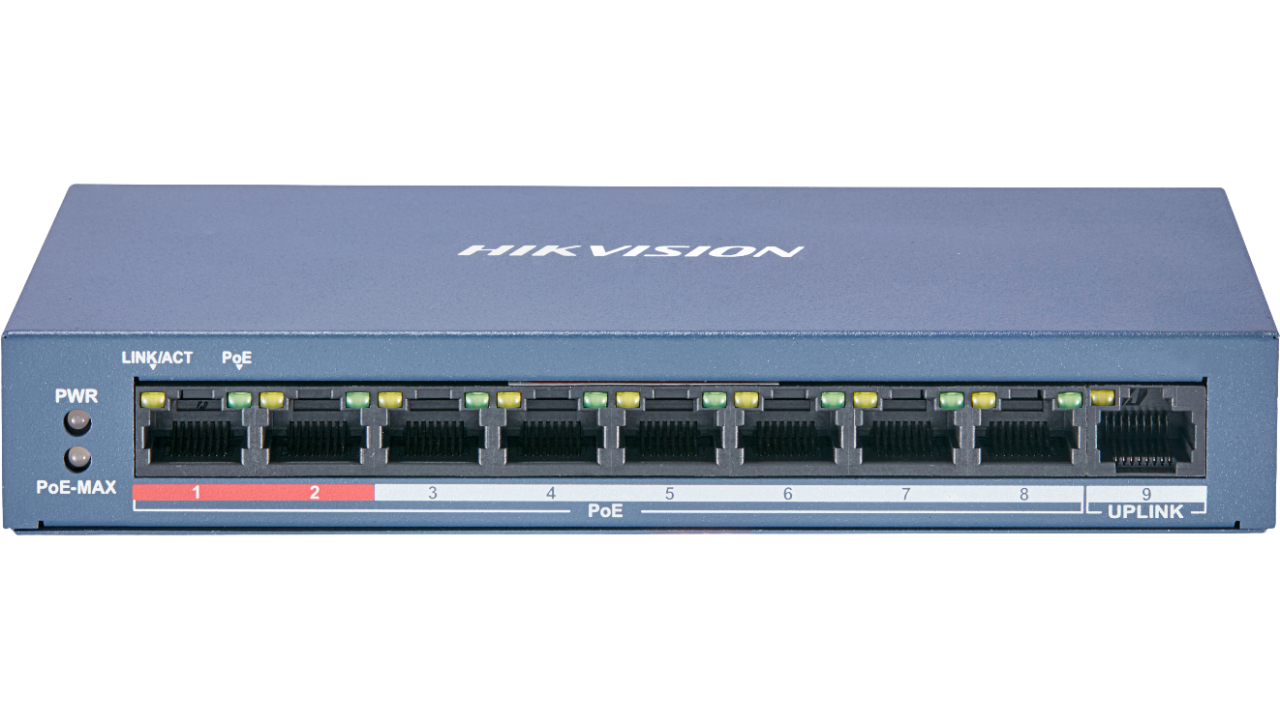

    DS-3E0109P-E/M(B) 8 Port Fast Ethernet Unmanaged POE Switch


    • Description

    DS-3E0109P-E/M(B) 8 Port Fast Ethernet Unmanaged POE Switch



    ·         Port Number : 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port

    ·         Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive

    ·         Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x

    ·         Forwarding Mode : Store-and-forward switching

    ·         Working Mode : Standard mode (default); Extend mode

    ·         High Priority Ports : Ports 1 to 2

    ·         Ports For Long-Distance Transmission : Ports 1 to 8

    ·         MAC Address Table : 2 K

    ·         Switching Capacity : 1.8 Gbps

    ·         Packet Forwarding Rate : 1.339 Mpps

    ·         Internal Cache1 :  Mbits

    ·         PoE Standard : IEEE 802.3af, IEEE 802.3at

    ·         PoE Power Pin : Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply

    ·         PoE Port : Ports 1 to 8

    ·         Max. Port Power : 30 W

    ·         PoE Power Pudget : 60 W

    ·         Max. Power Consumption : 65 W

    ·         Shell : Metal material, fan-free design

    ·         Gross Weight : 0.89 kg (1.96 lb)

    ·         Net Weight : 0.35 kg (0.77 lb)

    ·         Dimension (L × H × D) : 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)

    ·         Power Supply : 48 VDC, 1.35 A

    ·         Power Consumption In Idle : 5 W
