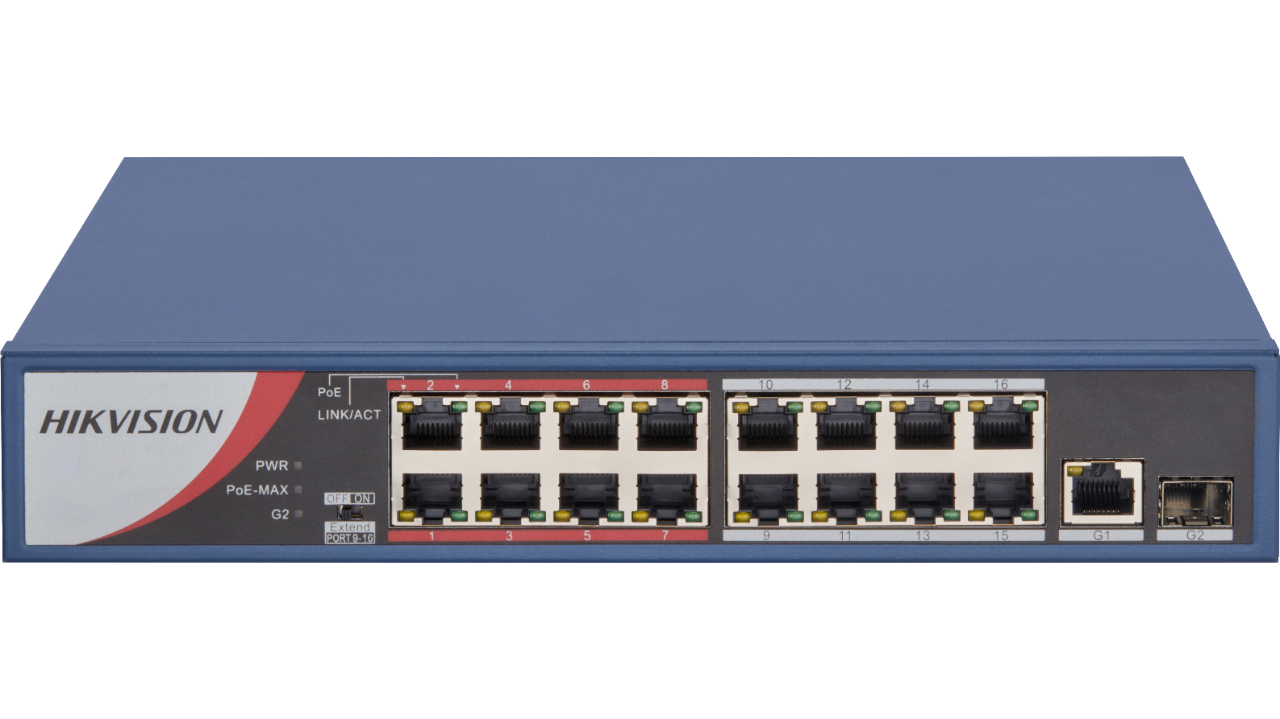

    DS-3E0318P-E/M(B) 16 Port Fast Ethernet Unmanaged POE Switch


    • Description

    DS-3E0318P-E/M(B) 16 Port Fast Ethernet Unmanaged POE Switch



    ·         Port Number : 16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port

    ·         Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive

    ·         Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x

    ·         Forwarding Mode : Store-and-forward switching

    ·         Working Mode : Standard mode (default); Extend mode

    ·         High Priority Ports : Ports 1 to 8

    ·         Ports For Long-Distance Transmission : Ports 9 to 16

    ·         MAC Address Table : 4 K

    ·         Switching Capacity : 7.2 Gbps

    ·         Packet Forwarding Rate : 5.356 Mpps

    ·         Internal Cache : 2.75 Mbits

    ·         PoE Standard : IEEE 802.3af, IEEE 802.3at

    ·         PoE Power Pin : Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply. ; Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

    ·         PoE Port : Ports 1 to 16

    ·         Max. Port Power : 30 W

    ·         PoE Power Pudget : 130 W

    ·         Max. Power Consumption : 150 W

    ·         Shell : Metal material

    ·         Gross Weight : 2.58 kg (5.69 lb)

    ·         Net Weight : 1.8 kg (4.0 lb)

    ·         Dimension (L × H × D) : 266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)

    ·         Power Supply : 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
