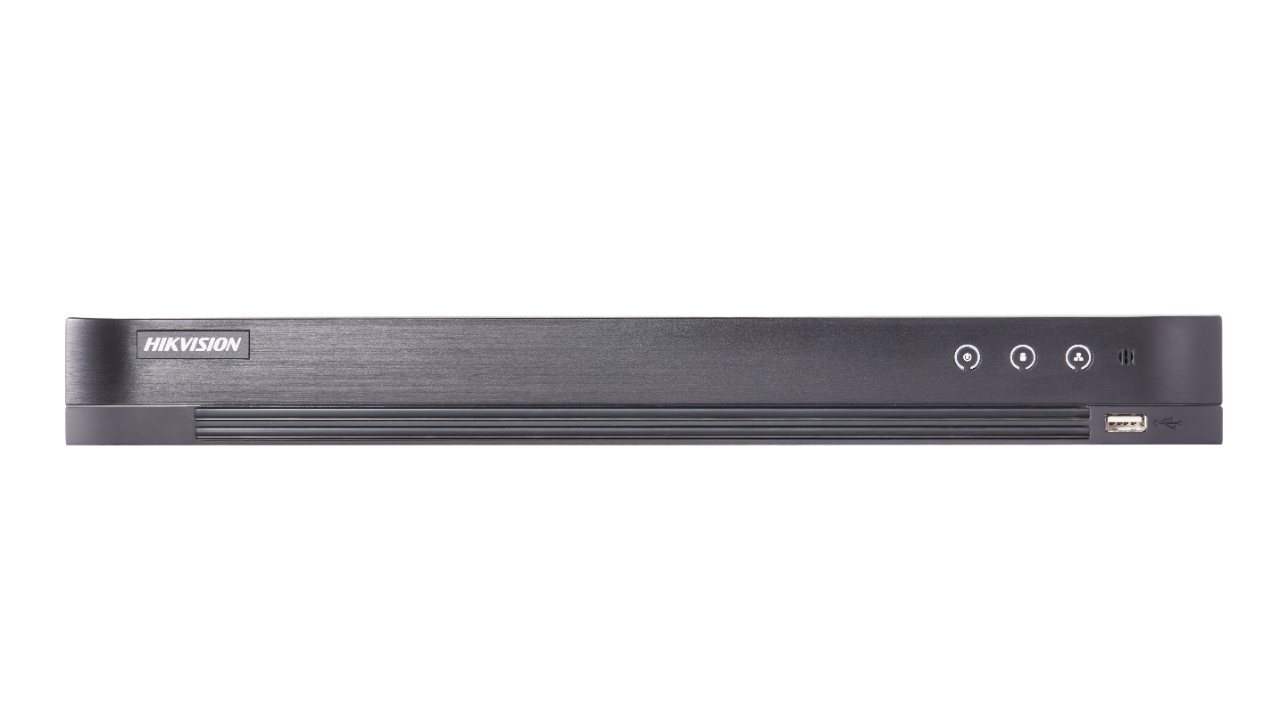

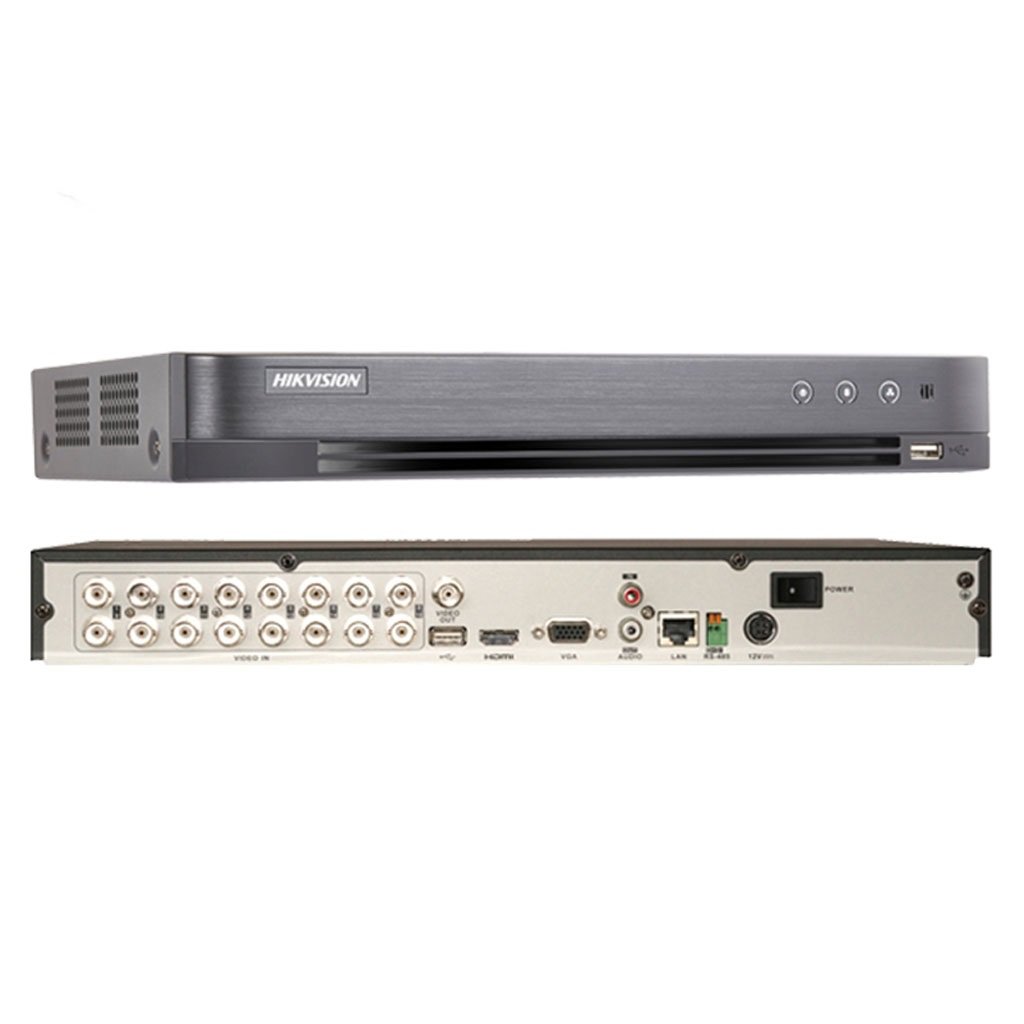

DS-7216HUHI-K2 16-ch 5 MP 1U H.265 DVR
· Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
· Encoding Resolution : 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
· Video Bit Rate : 32 Kbps to 10 Mbps
· Dual Stream : Support
· Stream Type : Video, Video & Audio
· Audio Compression : G.711u
· Audio Bit Rate : 64 Kbps
· IP Video Input : 16-ch (up to 32-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
· Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
· AHD Input : 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
· HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
· CVBS Input : PAL/NTSC
· Audio Input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)
· Audio Output : 1-ch, RCA (Linear, 1 KΩ)
· Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
· Synchronous Playback : 16-ch
· HDTVI Input : 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
· VGA/HDMI Output : VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz
· CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω)
· 16 channels and 2 HDDs 1U DVR
· Efficient H.265 pro+ compression technology
· Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
· 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
· Up to 32 network cameras can be connected
